24 VDC Valves Designed for Modularity with Sturdy Mechanics

AutomationDirect’s NITRA line of pneumatic products now includes the 24 VDC compact modular valves, which are designed for performance, flexibility, and modularity combined with sturdy mechanics.

AutomationDirect’s NITRA line of pneumatic products now includes the 24 VDC compact modular valves, which are designed for performance, flexibility, and modularity combined with sturdy mechanics.
AutomationDirect’s NITRA line of pneumatic products now includes the 24 VDC compact modular valves, which are designed for performance, flexibility, and modularity combined with sturdy mechanics.
AutomationDirect

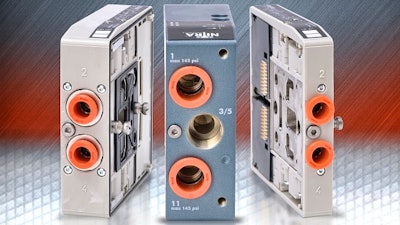

AutomationDirect’s (Cumming, GA) NITRA line of pneumatic products now includes the 24 VDC compact modular valves, which are designed for performance, flexibility, and modularity combined with sturdy mechanics. Features include:

  • 3-way/2-position, 5-way/2-position and 5-way/3-position configurations.
  • Single or double normally-open or normally-open/normally-closed solenoids.
  • A 3/8” push-to-connect tubing input.
  • Output sizes of 5/32” to 3/8”.
  • Various mounting positions.
  • Multiple accessories, including 25-pin female D-sub connectors, blank marking tags, pigtail cables, 35 mm DIN rail mounting brackets, and pneumatic release tools.

Compact intermediate modules have also been added to the line:

  • In applications with a large number of high flow valves, an intermediate through module provides additional air inlets.
  • To provide dual pressures in a manifold, an intermediate blind module serves as an independent supply to valves to its right while blocking the main supply from the left.
  • For applications requiring quicker exhaust on some valves, an intermediate exhaust module provides a dedicated exhaust for valves to its right while blocking exhaust from valves to its left.

Additional modular left and right end plates are also available.

For more information, visit www.automationdirect.com/pneumatic-solenoid-valves.
