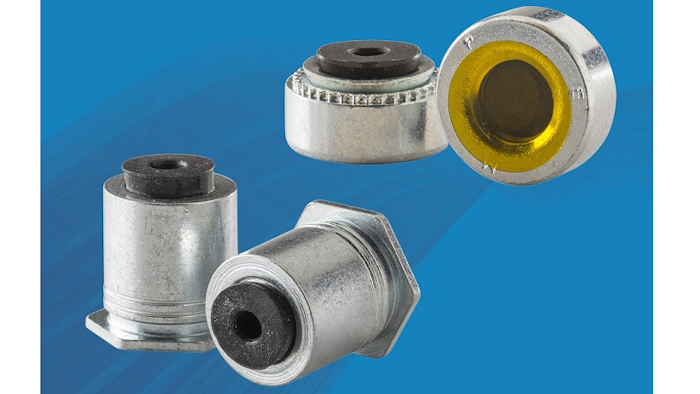

New PEM PreTect thread masking plugs from PennEngineering (Danboro, PA) will protect internal threads of self-clinching nuts and standoffs during paint and powder coating processes. The pre-installed silicone masking plugs – supplied already in place – have been designed for self-clinching blind standoffs, thru-hole standoffs and nuts in thread sizes #4-40 to ¼-20 and M3 to M6. Plugs can be augmented for thru-hole fastener types with a specially engineered stretched polyester film offering thread protection on the side opposite the plug. Plugs and film can be removed easily using a fine tip tool when processes are completed.
Usually installed during the fabrication process – before an assembly would undergo painting or powder coating – self-clinching fasteners become integral components. The new plugs and film ensure that paints or powder coatings will not impact the thread integrity of installed fasteners as assemblies move through production.
