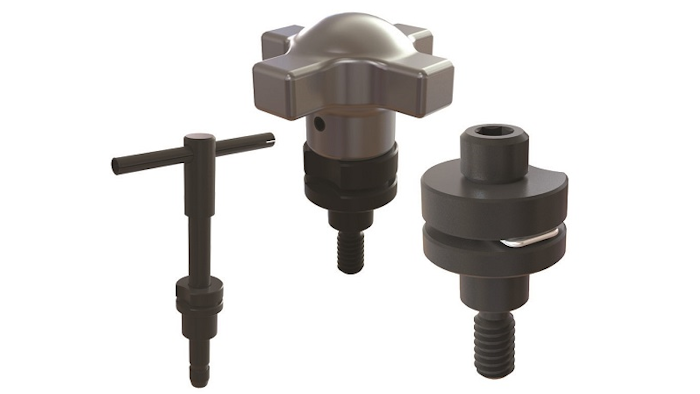

New Captive Locating Screws and Captive Jig Pins from Carr Lane Mfg. Co. (St. Louis, MO) are quick-acting, all-in-one assemblies to keep all tooling right at hand. Both assemblies have a precision-ground body that is positively retained in a locking bushing, with a spring clip that snaps into the body’s radial groove. In addition, spring pressure holds the products in place, an advantage especially if the fixture is turned upside down while handling. Captive Locating Screws can be used for locating and clamping in one action, or for clamping only, by selecting the appropriate screw length. Captive Locating Screws are available with a socket-head, hand-knob or swivel-washer hand-knob, each in a wide selection of diameters and lengths.
www.carrlane.com; 314-647-6200
