HazLoc Cabinet Coolers Approved for Class I Div 1

They feature cooling capacity of up to 5,600 Btu/hr., making them ideal for electrical enclosures with problematic overheating.

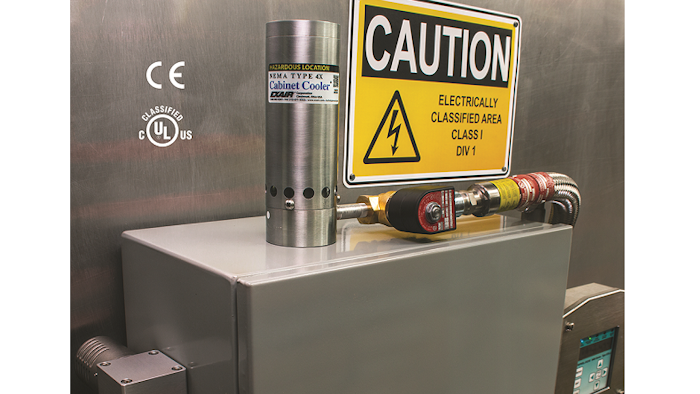

Exair Sized

The new Hazardous Location Cabinet Cooler Systems from EXAIR (Cincinnati, OH) have achieved the UL classified designation for Div1 environments. They have been tested by UL and passed their stringent requirements for use upon classified purged and pressurized electrical enclosures within Class I Div 1, Groups A, B, C and D; Class II Div 1, Groups E, F and G – and Class III environments. Benefits include the following:

  • Cooling capacity of up to 5,600 Btu/hr., making them ideal for electrical enclosures with problematic overheating.
  • CE compliance, and availability for NEMA 4 and 4X enclosures.
  • The ability to circulate 20°F (-7°C) air inside the enclosure to prevent high temperature faults.
  • Mounting in a standard electrical knockout while keeping the NEMA 4 or 4X rating of the enclosure.
  • An auto drain filter separator to ensure no moisture passes to the inside of the electrical enclosure.
  • An optional thermostat control minimizing compressed air use and keeping the enclosure at ± 2ºF of the setting.

EXAIR’s full line of Cabinet Cooler Systems are available for NEMA 12, 4 and 4X enclosures from 275-5,600 Btu/Hr and are UL listed and CE compliant with no moving parts to wear out. Applications include cooling control panels, PLCs, microprocessors, fractional Hp variable frequency drives and robotics.

https://exair.co/33_hzlc_em; 800-903-9247
