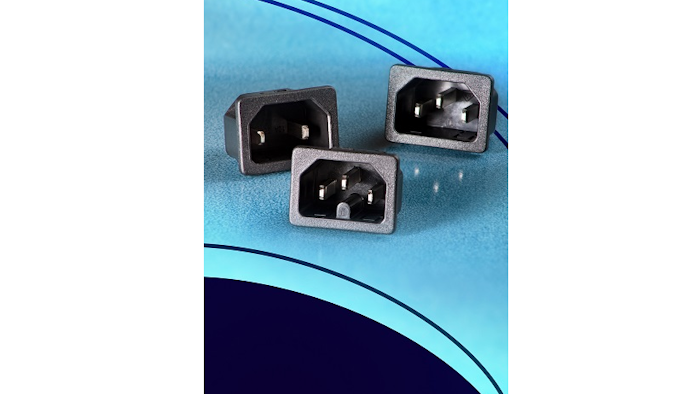

C14, C16, and C18 Snap-In Inlets

All of these snap-in inlets are rated 10A/250VAC international and 15A/250VAC North American, have QD and solder tab options, and fit a 20 x 27.5mm cutout.

Interpower Sized
Interpowerheader

Interpower (Oskaloosa, IA) has added to its IEC 60320 inlet product line as it is now manufacturing in its Iowa facility its own C14, C16, and C18 snap-in inlets designed for 2.0mm and 3.0mm panel thicknesses. All of these snap-in inlets are rated 10A/250VAC international and 15A/250VAC North American, have QD and solder tab options, and fit a 20 x 27.5mm cutout. They carry VDE and cURus approvals and are RoHS compliant. Specifically:

  • The Interpower C14 snap-in inlet is now available in 1.0, 1.5, 2.0, and 3.0mm panel thickness. It is rated up to 70°C and can be used in an application that requires connection to a C13 connector.
  • The Interpower C16 snap-in inlet is now available in 1.0, 1.5, 2.0, and 3.0mm panel thickness. It is rated for “hot” conditions (up to 120°C) and can be used in an application that requires connection to a C15 connector.
  • The Interpower C18 snap-in inlet is now available in 1.0, 1.5, 2.0, and 3.0mm panel thickness. It is rated up to 70°C and can be used in an application that does not require a provision for grounding and requires a connection to a C17 connector.

Interpower has no minimum order or dollar requirements, offers a 1-week U.S. manufacturing lead-time on non-stock Interpower products, same day shipping on in-stock products, and allows customers to lock in pricing with blanket or scheduled orders. Interpower also offers value-added services, along with free technical support.

www.interpower.com; 800-662-2290
