Automatic Lubricator

The TLMP system can supply from 1 to 18 lubrication points on a controlled and timely basis in order to deliver the proper lubrication amount at the required frequency.

Skf

The new MultiPoint Automatic Lubricator TLMP series from SKF (Lansdale, PA) introduces a centralized and ready-to-use lubrication system to automatically lubricate multiple bearing lubrication points in rotating equipment applications across a variety of industries. This sturdy system with pluggable outlets is packaged as a complete kit and designed for easy installation and user-friendly programming via keypad with LED display. The TLMP system can supply from 1 to 18 lubrication points on a controlled and timely basis in order to deliver the proper lubrication amount at the required frequency to optimize bearing performance and equipment reliability. Specifically:

  • Use of the system eliminates the typical challenges and issues associated with manual lubrication, including difficult-to-access lubrication points, over- or under-greasing, equipment shutdowns during lubrication maintenance and potential worker injury during their lubrication routes.

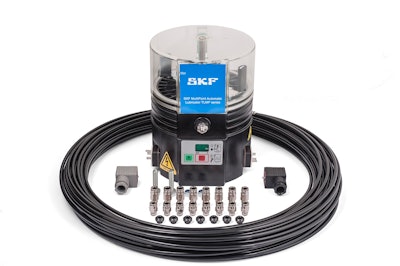

  • The TLMP series is equipped with lubricator, required tubing and connectors. The system features a durable metal housing, generous one-liter reservoir capacity, stirring paddle to prevent grease separation, and cycle control sensor to govern ideal delivery of lubricant.
  • Maximum operating pressure of 120 bar (1,740 psi) can be achieved and the system can perform in temperatures from -25ยบ C to 70ยบ C (-13ยบ F to 158ยบ F).

As value-added safeguards, the TLMP system features low-level and malfunction alarms โ€“ with notifications even at remote locations โ€“ alerting when the reservoir is empty or when an outlet is blocked.

www.skfusa.com; 800-440-4SKF
