More Reliable 5-Axis Machining

The machining center offers boring, end milling, finish cutting, threading and U-axis machining with a 60-HP spindle drive motor at 6,000 RPM.

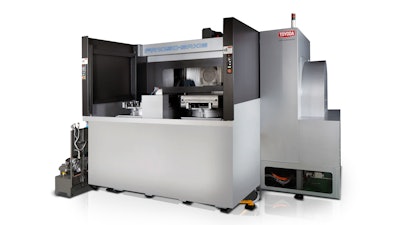

Toyoda 56fd5aa4d3942

Toyoda’s (Arlington Heights, IL) FA1050 5-Axis HMC features:

  • The highest removal rate and lowest required maintenance in its class, according to the company.
  • Capabilities that include boring, end milling, finish cutting, threading and U-axis machining.
  • A solid cast iron base combined with a full-plate clamping mechanism that can provide up to 26,000 lbs. of table clamp force.
  • Spindle support from four heavy-duty bearings.
  • Double-row cylindrical roller bearings and dual angular contact thrust bearings to help eliminate vibration.
  • A 60-HP spindle drive motor at 6,000 RPM.
  • The ability to handle Hastelloyâ„¢, Inconelâ„¢ and Nichrome, as well as other exotic metals.
  • A work envelope with an X axis of 59.1", Y axis T of 55.1" and Z axis of 45.2".

www.toyoda.com; (847) 253-0340
