Wireless, Non-Contact Magnetic Sensors

In the presence of their actuating magnet, these sensors send a unique, coded telegram to one or more compatible, easily-programmed receivers.

Steute Web 57e2e852a8a36

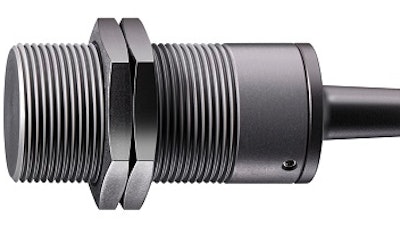

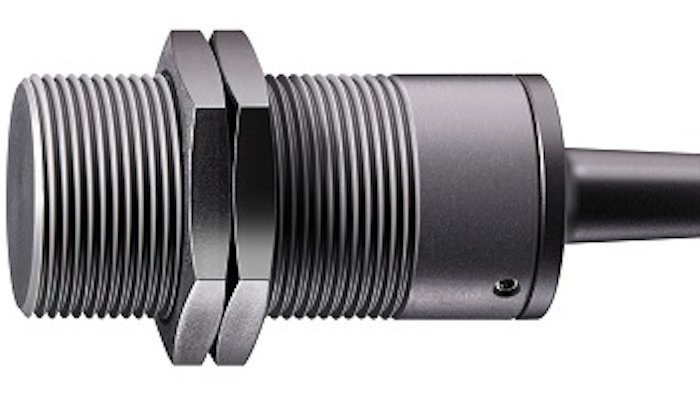

Steute Wireless (Ridgefield, CT) introduces its wireless, non-contact magnetic sensors. In the presence of their actuating magnet, these sensors send a unique, coded telegram to one or more compatible, easily-programmed receivers. The receiver accepts up to 10 discrete telegrams per channel. Powered by long-life (field-replaceable) lithium battery, this sensor also features:

  • Availability for operation at 915 MHz (USA/Canada/Australia) or 868 MHz (Europe).
  • Maximum nominal transmission range of 40 m indoors, 450 m "free air."
  • Sensing range of up to 30 mm.
  • Bidirectional communications, with the receiver confirming receipt of telegram.
  • Limit switch signal configurable at receiver (e.g.  NO, NC, other).
  • An IP67 ingress protection rating.
  • A mechanical life expectancy of >1 million actuations.
  • An operating temperature range of -20 to + 65oC.
  • Certifications:  FCC, IC (SW915 MHz models), EC (868 MHz models).

www.SteuteWireless.com; 203-244-6304
