Higher Resolution, Direct Drive Linear Motors

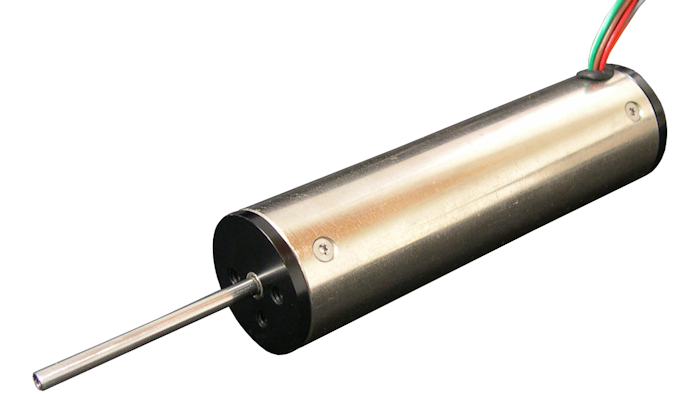

Moticont offers their SDLM-025-070-01-01 direct drive linear motor with a built-in encoder.

Moticont 57055fe3d90f8

Moticont offers their SDLM-025-070-01-01 direct drive linear motor, also known as an electric cylinder, with:

  • A built-in encoder to help improve acceleration, speed, resolution and durability.
  • 1.25 ยตm (0.000049 in.) of resolution.
  • A more compact footprint of 1โ€ (25.4 mm) in diameter and 2.75โ€ (69.9 mm) long.
  • Inside the motor housing, the linear optical quadrature encoder is directly connected to the shaft for greater accuracy.
  • A stroke length of 0.5โ€ (12.7 mm) and a continuous force rating of 22.2 oz. (5.9 N) and peak force of 67.2 oz (18.7 N).
  • Quieter, longer life plain linear bearings.

http://www.moticont.com
