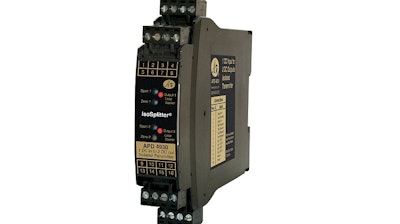

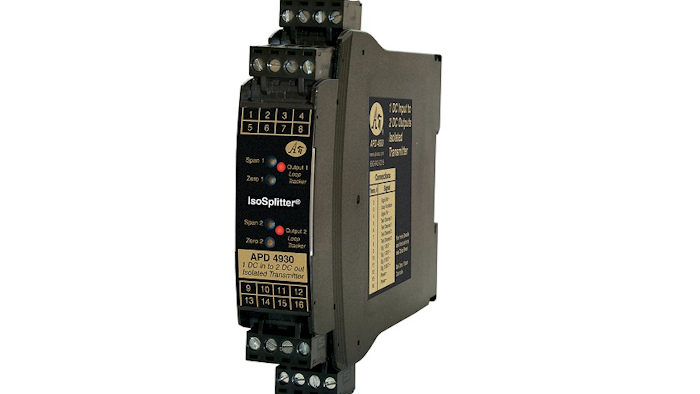

The new APD 4930 IsoSplitter DC to DC transmitter from Absolute Process Instruments, Inc. (Libertyville, IL) can convert and split a DC voltage or current input into two optically isolated outputs. DC input ranges such as 0-100 mV to ±10V or 0-1mA to 4-20mA are available. Additionally, process signal outputs are available and are individually configured to user specifications, which makes the APD 4930 ideal for applications such as process validation where one measurement must be monitored or recorded by two separate devices. Exclusive features include:
- Output LoopTracker LEDs and manual override functions that allow testing the output independent of the input signal.
- Standard 2000VRMS full optical isolation (power/channel, input/output, channel/channel).
- A lifetime warranty.
