Autonomous Drone Flies Using AI Based on Animal Brains

Animal brains use less data and energy.

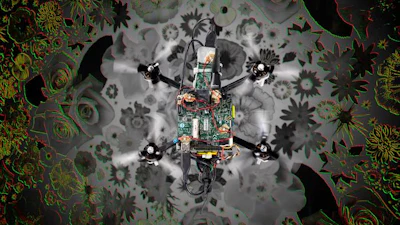

Photo of the “neuromorphic drone” flying over a flower pattern. It illustrates the visual inputs the drone receives from the neuromorphic camera in the corners. Red indicates pixels getting darker, green indicates pixels getting brighter.
Photo of the β€œneuromorphic drone” flying over a flower pattern. It illustrates the visual inputs the drone receives from the neuromorphic camera in the corners. Red indicates pixels getting darker, green indicates pixels getting brighter.
Guido de Croon

Researchers at Delft University of Technology in the Netherlands have developed a drone that flies autonomously. The drone uses neuromorphic image processing and control based on the workings of animal brains.

Animal brains use less data and energy than current deep neural networks running on graphics processing chips (GPUs). Neuromorphic processors are, therefore, very suitable for small drones because they don't need heavy and large hardware and batteries. The results are extraordinary.

During flight, the drone's deep neural network processes data up to 64 times faster and consumes three times less energy than running on a GPU. Further developments of this technology may enable the leap for drones to become as small, agile, and smart as flying insects or birds. The findings were recently published in Science Robotics.

Learning from animal brains

Artificial intelligence holds great potential to provide autonomous robots with the intelligence needed for real-world applications. However, current AI relies on deep neural networks that require substantial computing power. The GPUs made for running deep neural networks consume a substantial amount of energy. Especially for small robots like flying drones this is a problem, since they can only carry very limited resources in terms of sensing and computing.

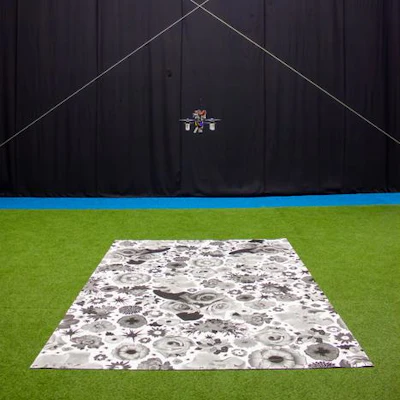

The first drone flying with fully vision-to-control neuromorphic AI.The first drone flying with fully vision-to-control neuromorphic AI.Guido de Croon

Animal brains process information in a very different way from the neural networks running on GPUs. Biological neurons process information asynchronously and mostly communicate via electrical pulses called spikes. Since sending such spikes costs energy, the brain minimizes spiking, leading to sparse processing.

Inspired by these properties of animal brains, scientists and tech companies are developing new neuromorphic processors. These processors allow the running of spiking neural networks and promise to be much faster and more energy efficient.

"The calculations performed by spiking neural networks are much simpler than those in standard deep neural networks," says Jesse Hagenaars, PhD candidate and one of the article's authors. "Whereas digital spiking neurons only need to add integers, standard neurons have to multiply and add floating point numbers. This makes spiking neural networks quicker and more energy efficient. To understand why, think of how humans also find it much easier to calculate 5 + 8 than to calculate 6.25 x 3.45 + 4.05 x 3.45."

This energy efficiency is further boosted if neuromorphic processors are combined with neuromorphic sensors, like neuromorphic cameras. Such cameras do not make images at a fixed time interval. Instead, each pixel only sends a signal when it becomes brighter or darker. The advantages of such cameras are that they can perceive motion much more quickly, are more energy efficient, and function well in dark and bright environments. Moreover, the signals from neuromorphic cameras can feed directly into spiking neural networks running on neuromorphic processors. Together, they can form a huge enabler for autonomous robots, especially small, agile robots like flying drones.

First neuromorphic vision and control of a flying drone

In an article published in Science Robotics on May 15, 2024, researchers from Delft University of Technology, the Netherlands, demonstrate for the first time a drone that uses neuromorphic vision and control for autonomous flight. Specifically, they developed a spiking neural network that processes the signals from a neuromorphic camera and outputs control commands that determine the drone's pose and thrust. They deployed this network on a neuromorphic processor, Intel's Loihi neuromorphic research chip, onboard a drone. Thanks to the network, the drone can perceive and control its own motion in all directions.

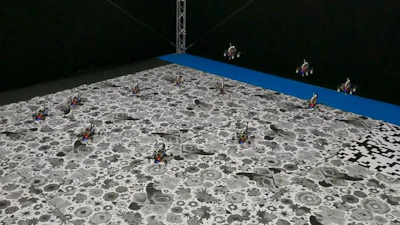

Drones flying with Liohi-powered fully vision-to-control neuromorphic AI.Drones flying with Liohi-powered fully vision-to-control neuromorphic AI.Guido de Croon

"We faced many challenges," says Federico Paredes-VallΓ©s, one of the researchers who worked on the study, "but the hardest one was to imagine how we could train a spiking neural network so that training would be both sufficiently fast and the trained network would function well on the real robot. In the end, we designed a network consisting of two modules. The first module learns to visually perceive motion from the signals of a moving neuromorphic camera. It does so completely by itself, in a self-supervised way, based only on the data from the camera. This is similar to how also animals learn to perceive the world by themselves. The second module learns to map the estimated motion to control commands, in a simulator. This learning relied on an artificial evolution in simulation, in which networks that were better in controlling the drone had a higher chance of producing offspring. Over the generations of the artificial evolution, the spiking neural networks got increasingly good at control, and were finally able to fly in any direction at different speeds. We trained both modules and developed a way with which we could merge them together. We were happy to see that the merged network immediately worked well on the real robot."

With its neuromorphic vision and control, the drone can fly at different speeds under varying light conditions, from dark to bright. It can even fly with flickering lights, which cause the pixels in the neuromorphic camera to send a large number of signals to the network that are unrelated to motion.

Improved energy efficiency and speed

"Importantly, our measurements confirm the potential of neuromorphic AI. The network runs on average between 274 and 1600 times per second. If we run the same network on a small, embedded GPU, it runs on average only 25 times per second, a difference of a factor ~10-64! Moreover, when running the network, Intel's Loihi neuromorphic research chip consumes 1.007 watts, of which 1 watt is the idle power that the processor spends just when turning on the chip. Running the network itself only costs 7 milliwatts. In comparison, when running the same network, the embedded GPU consumes 3 watts, of which 1 watt is idle power and 2 watts are spent for running the network. The neuromorphic approach results in AI that runs faster and more efficiently, allowing deployment on much smaller autonomous robots.", says Stein Stroobants, PhD candidate in the field of neuromorphic drones.

Future applications

"Neuromorphic AI will enable all autonomous robots to be more intelligent," says Guido de Croon, professor of bio-inspired drones, "but it is an absolute enabler for tiny autonomous robots. At Delft University of Technology's Faculty of Aerospace Engineering, we work on tiny autonomous drones which can be used for applications ranging from monitoring crop in greenhouses to keeping track of stock in warehouses. The advantages of tiny drones are that they are very safe and can navigate in narrow environments like in between ranges of tomato plants. Moreover, they can be very cheap, so that they can be deployed in swarms. This is useful for more quickly covering an area, as we have shown in exploration and gas source localization settings.

"The current work is a great step in this direction. However, the realization of these applications will depend on further scaling down the neuromorphic hardware and expanding the capabilities towards more complex tasks such as navigation."
